Features
◇ Large bellows, suitable for handling workpiece for height difference.
◇ Good sealing with flat and thin lip.
◇ Large flow, handling objects quickly.
◇ Silicone material, working temperature range(-40~200℃）
Applications
◇ Suitable for handling bags with irregular shapes.
◇ Frozen food bags
◇ Water bags
Usage

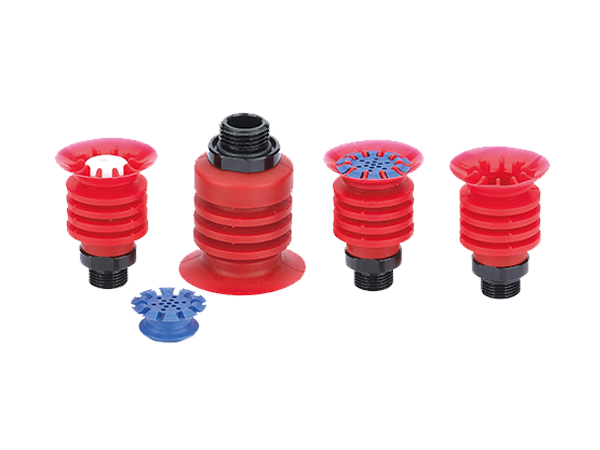

SBLP series suction cup have a large inner space due to the multi bellows design. While handling light
and thin workpiece(such as thin plastic bags, paper, etc.),the workpiece usually deforms and it will be
sucked into the inner space of suction cup. Therefore, AIRBEST offers an improved solution with a special
plug at the bottom to prevent excessive deformation of the workpiece and ensure normal suction.
T1(White round plug):For thin and soft workpiece with large deformation.
T2(Blue flower shape plug):For slightly hard workpiece with small deformation.
| How to order | ||||||||
| SBLP 30 S -G2M -T2 ① ② ③ ④ ⑤ | ||||||||
| ① Series | ② Diameter | ③ Material & Hardness | ④ Connection thread | ⑤ Plug | ||||
| SBLP | 30 - φ30mm 40 - φ40mm 50 - φ50mm | S - Silicone | Nil - Suction cup alone G2M - G1/4 Male thread G3M - G3/8 Male thread G4M - G1/2 Male thread | Nil - Without plug T1 - Round plug (White) T2 - Flow shape plug (Blue) | ||||
| Selection | ||||||||
| Model/ Connection thread | G2M | G3M | G4M | T1 | T2 | |||
| SBLP30 | ● | - | - | ○ | ● | |||
| SBLP40 | - | ● | - | - | ● | |||
| SBLP50 | - | - | ● | ○ | ● | |||
◇Note: "●"- standard, in stock. "○"-selective,no stock."—"-unavailable.
| Technical parameters | ||||
| Model | Pull-out force (N) | Inner volume (cm3) | Min. curve radius of workpiece (mm) | Recommended hose dia. (mm) |
| SBLP30 | 9 | 8 | 8 | |
| SBLP40 | 15 | 14 | 17 | 8 |
| SBLP50 | 25 | 38 | 22 | 10 |
◇Note: Testing vacuum level -60kPa.Workpiece with smooth and clean surface. The data of pull-out force as above are
figured out without considering safety factor. The data may be different according to different workpiece surfaces.

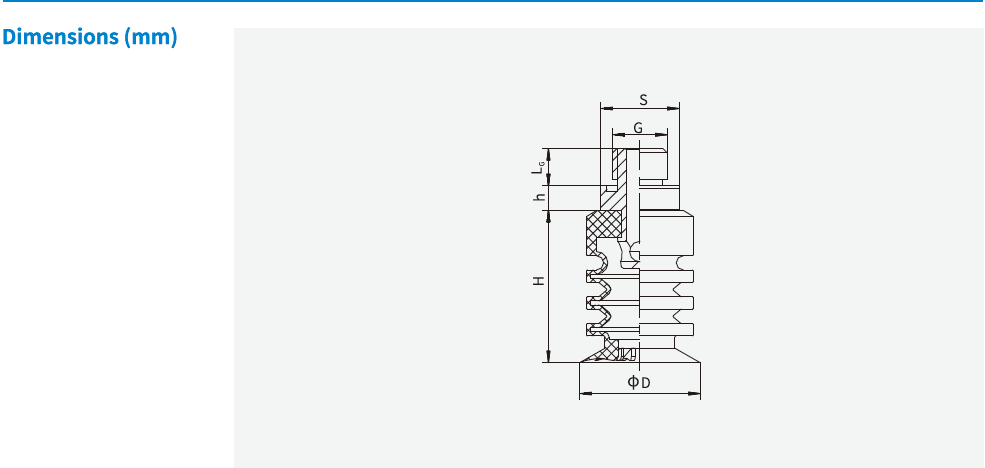

| Model/ Size | D | H | h | LG | G | S |
| SBLP30-G2M | 30 | 36.5 | 6 | 9 | G1/4 | 19 |
| SBLP40-G3M | 40 | 40 | 6 | 10 | G3/8 | 22 |
| SBLP50-G4M | 50 | 55 | 6 | 10 | G1/2 | 28 |
| Mounting parts | ||||||
| Item | Model | Applicable suction cup | ||||
| Fitting for suction cup | PJS-G2M-SBLP30 | SBLP30 | ||||
| PJS-G3M-SBLP40 | SBLP40 | |||||
| PJS-G4M-SBLP50 | SBLP50 | |||||
